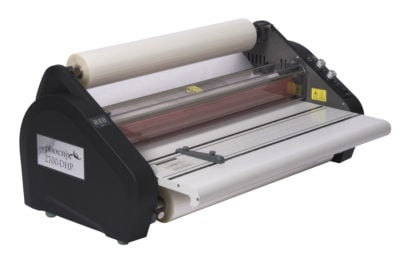

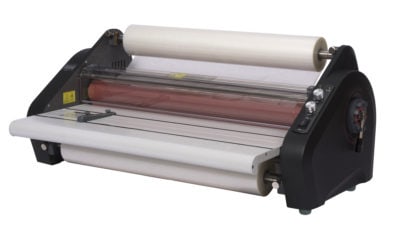

Phoenix 2700-DHP Dual Heat Laminator Production Model
$2,985.00
The Phoenix 2700-DHP is the perfect choice for production environments looking for an economical, easy-to-use unit that can withstand heavy demand. Designed to offer maximum flexibility, the 2700-DHP is compatible with either 1″ or 21⁄4” core laminating films in thicknesses of 1.5 mil to 10.0 mil and can be gapped incrementally at settings of 1⁄16“, 1⁄8“, 3⁄16“, and 1⁄4” to accomplish mounting on a large variety of substrates.
With safety and energy savings concerns in mind, the Phoenix 2700-DHP includes the latest innovations. Safety features include: an advanced safety shield, a safety feed table, and a standby mode. To conserve energy, the machine will drop into a sleep mode (175° F) if unit has been idle for 3 hours. If there is no activity on the unit for 4 hours, the heaters turn off. With all these features wrapped into one compact, desktop-sized packaged, the 2700-DHP will boost productivity and decrease production time!
- Wide Capacity: Laminates documents up to 27″ wide
- Adjustable Supply Roll Tension:
- Incremental Roller Gapping: Rollers can gap from 1⁄16” to 1⁄4” for mounting
- Cooling Fans: For heavier films
- Bottom Roller Heat Switch: Ability to turn off heat on bottom roller for mount or pouch boards
- Auto Shut-Off: With 175° F hold temperature
- Clear Polycarbonate Safety Shield: Prevents contact with heated rollers
- Chain and Sprocket Drive: Heavy-duty drive is durable, providing years of worry-free operation
- Reverse Feature: For easy roller cleaning and jam removal
- Heavy-Duty 24V DC Motor: Handles even the most demanding production environments
- Silicone Heated Rollers: Ensure even heat distribution for clean, bubble-free results
- Feed Tray: With paper guide standard widths marked on supply shaft
Specifications:
- Film Width Capacity: 27″
- Mounting Capacity: Up to 1⁄4“
- Film Thickness: 1.5 mil – 10 mil
- Lamination Speed: 1.6 – 10 feet per minute
- Film Core Capacity: 1″ and 21⁄4“
- Warm-Up Time: 20 minutes
- Heater Wattage: 1440 Watts
- Power Requirements: 12 Amps, 120 V AC, 60 Hz
- Dimensions: 361⁄2” x 16″ x 18″
- Weight: 120 lbs.
- Shipping Weight: 135 lbs.
- Warranty: One Year Manufacturer’s Warranty
Must ship truck- call for a freight quote!
